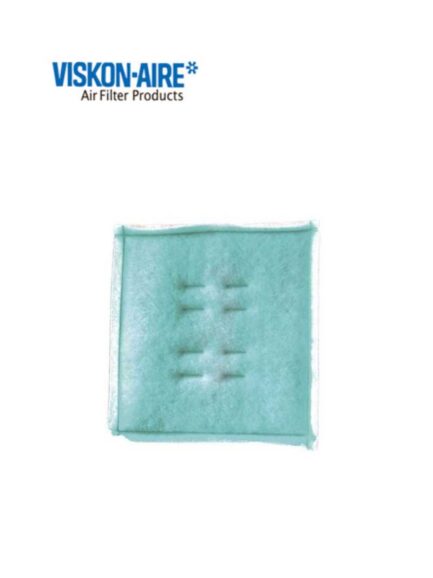

Viskon-Aire 20″W x 20″H Series 45 Intake Filter
$0
Product Description
Series 45 panels and links were designed for economical crossdraft intake filtration with a dry tackifier to hold dirt in place. Provides exceptional balance between price and performance. The self-sealing gasket and internal wire frame eliminates by pass and flutter to keep dirt out of the spraybooth.
Features
- Progressive media structure
- Optimizes plenum pressurization for even air flow
- Panel filters self-seal to eliminate any air by pass
- Dry tackifier
- 100% RH resistance
- 11 ga internal wire frame to support panel
- Solvent-resistant media during booth cleaning
- Continuous temperature 180 deg F (82.2 deg C) peaks 200 deg F
- Economical choice
- User friendly tack
- Easy installation
Descripción
Specifications
| Part No. | 4524-2020 |
|---|---|
| Product Line | VIS |
| MFR Model | 4524-2020 |
| Standard/Approvals | UL 900 |
| Application | For spray paint booths |
| Manufacturer | Viskon-Aire Filters |
| UPC | 636947103056 |
| Brand | Viskon-Aire |
| Part Status | A |
| Type | Self-Sealing, Internal Wire |
| Series | 45 |
| Width (in) | 20 |
| Depth (in) | 1 |
| Height (in) | 20 |
| Media Material | Polyester Fiber |
